Phantom Flex 4K - High Speed Worx

About Our High Speed Phantom Flex 4K Camera

Highspeedworx is proud to present the Phantom Flex 4K in South Africa.

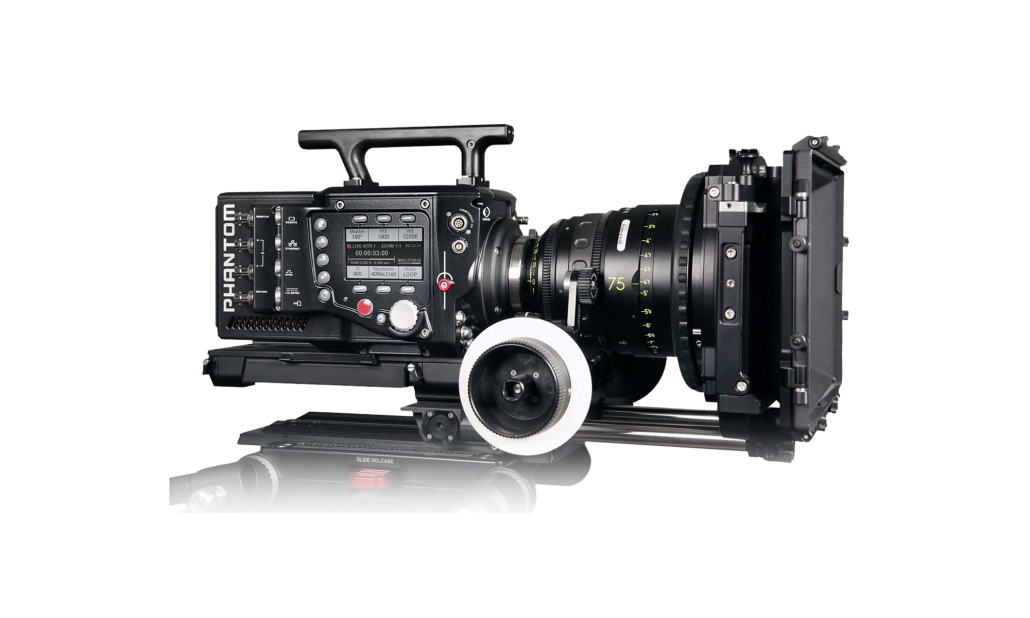

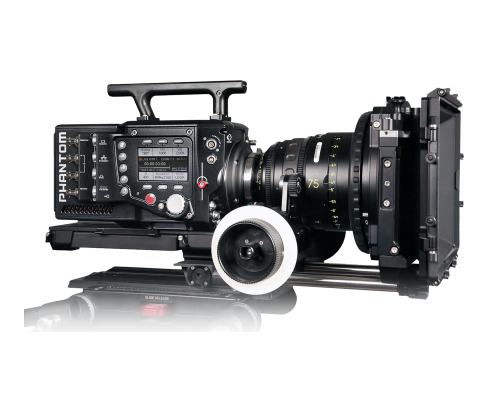

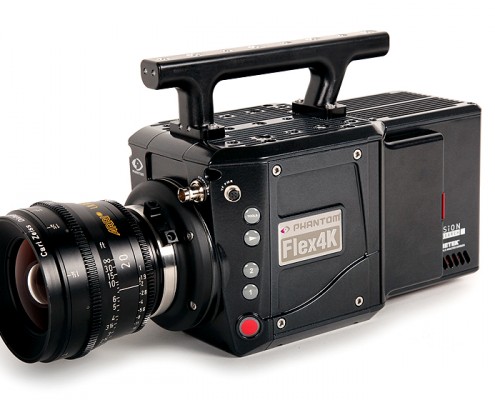

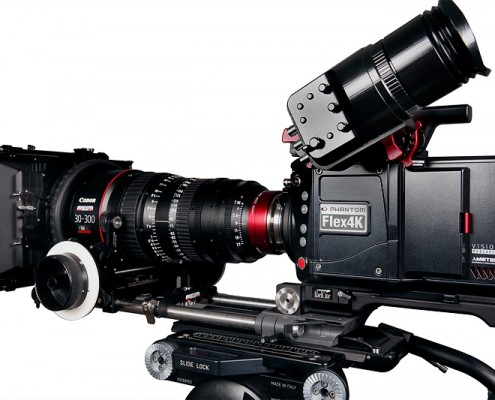

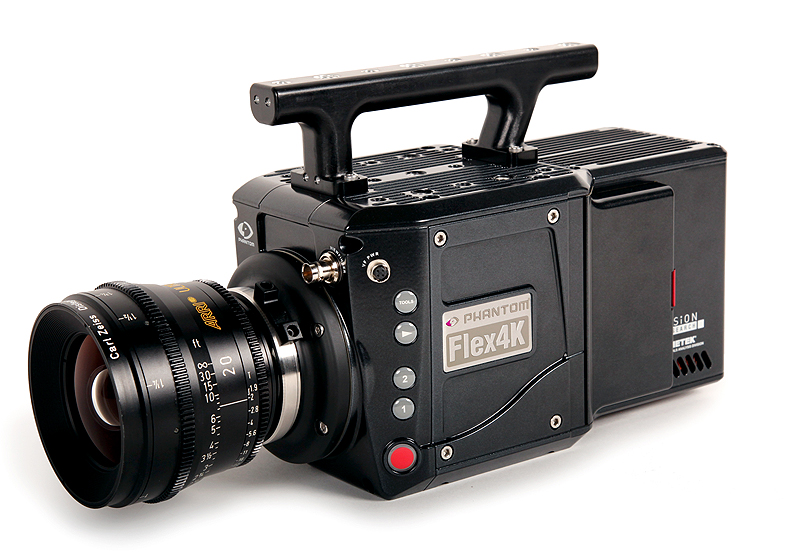

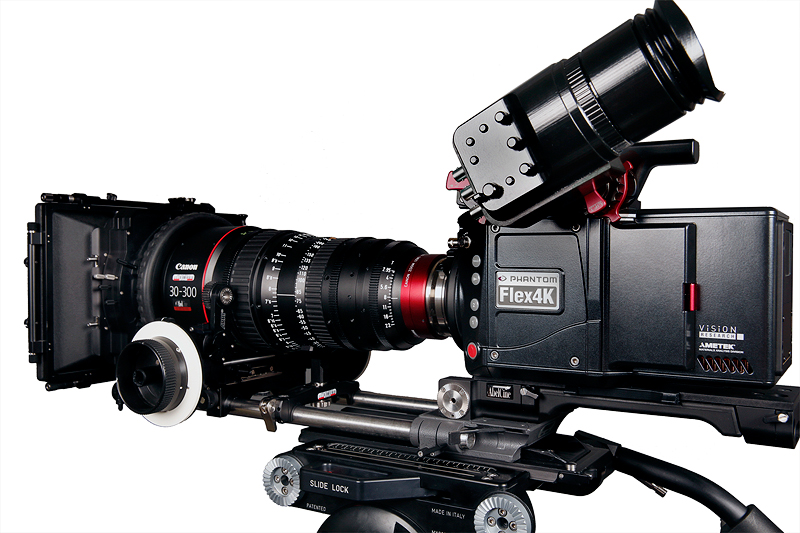

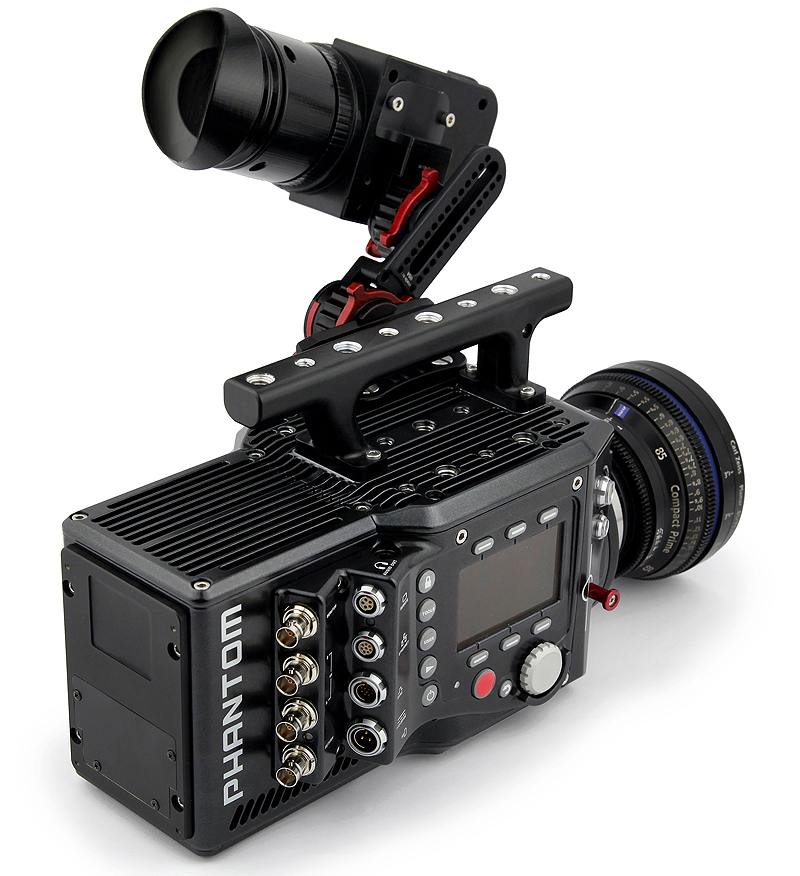

Designed for the cinematographer, the Phantom Flex 4K is an academy award winning high speed camera providing exceptional flexibility through its frame rate capabilities and by adapting to different shooting styles. The super-35mm 4K sensor provides sharp, detailed images with extremely low noise and high dynamic range.

The Phantom Flex 4K is the perfect A-Camera on any production. It is capable of shooting real sync sound 24p framerate and can be changed on the fly to an unprecedented 1,000 frames per second at 4K, and up to 2,000 frames per second at 2K/1080p.

The Cine raw format ensures the fastest high-speed capture on set and maximum quality and versatility for post-production. Files are saved to the hot-swappable Phantom CineMag and off-loaded via the CineStation to a transfer station, where it can be converted to the clients requested format.

How our Phantom Flex 4K works

Framerates

To calculate the Phantom Flex 4Ks frame rate, image size and recording time, you can download the app “Phantom Tools” onto your iOS device.

Resolution		Framerate
4096×2304	4K 16×9	900fps
4096×2160	4K DCI	1000fps
3840×2160	Quad HD	1025fps
1920×1080	Full HD	2000fps
1280×720	HD	3000fps

Here is some more handy information on Highspeedworx Phantom Flex 4K System:

Special Features

Resolution
True 4K Ultra HD Resolution – 4096 x 2304
Framerate
Supports Standard Sync Sound frame rates (24fps)

Between 15 fps to 1,000 fps at 4096 x 2160
Dynamic Range
12+ Bit Dynamic Range
Internal Memory
64GB of internal memory (shoot up to 5 Seconds real time @ 1000fps 4K)
Monitoring
Three main 3G HD-SDI outputs, which can be configured as independent 4:4:4 1080p signals or used together to supply a dual-link 4K output while maintaining a live HD signal
Viewfinder
A new, high-quality Phantom OLED HD Viewfinder is part of the system.
Lens Mount
Standard PL Mount and EF Mount.
Electricity and Battery Mount
The Phantom4k system has 2x 12V and 2x 24V accessory outputs. All our packages include 4 x BlueShape 250 Batteries, which provide at least 8 hours of running time.
